100mm Dia Rotary Elevator Door Sensor 24VDC TTL

  • 100mm Dia Rotary Elevator Door Sensor 24VDC TTL
  • 100mm Dia Rotary Elevator Door Sensor 24VDC TTL
  • 100mm Dia Rotary Elevator Door Sensor 24VDC TTL
  • 100mm Dia Rotary Elevator Door Sensor 24VDC TTL

100mm Dia Rotary Elevator Door Sensor 24VDC TTL

    Payment Type: T/T,Paypal
    Terms of Trade: FOB,CFR,FCA,CPT
    Min. Order: 1 Set/Sets
    Packaging: Carton
    Brand: LANDER
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 500 sets per week
    Certificate: ISO9001
    HS Code: 85437099

Basic Info

Model No.: 100H

Product Description


Products Description


100mm Dia Rotary Elevator Door Sensor


The 100H series incremental encoder adopts a 100mm size housing and a 30-45mm hollow shaft size, with stable performance and strong durability, and is suitable for the elevator industry. Various resolutions and control output options are available.Hollow rotary encoder is also known as through hollow encoder. custom encoder can be supplied according to specific requirement.


100mm shell elevator door encoder, 30-45mm hollow shaft optical rotary sensor

Suitable for elevator system

Power supply voltage: 5VDC, 8-26VDC

Hollow Shaft Rotary Sensor


WHY CHOOSE LANDER?
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

Hollow Shaft Incremental EncoderHollow Shaft Rotary EncoderHollow Shaft Encoder


Features:

* Good reliability, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.

* Metal shell is more solid and anti-impact.

* Bearing load heavy, anti-oil and water.

* Applicability to a wide variety of mechanical and industrial control.



Model Selection Guide

100H

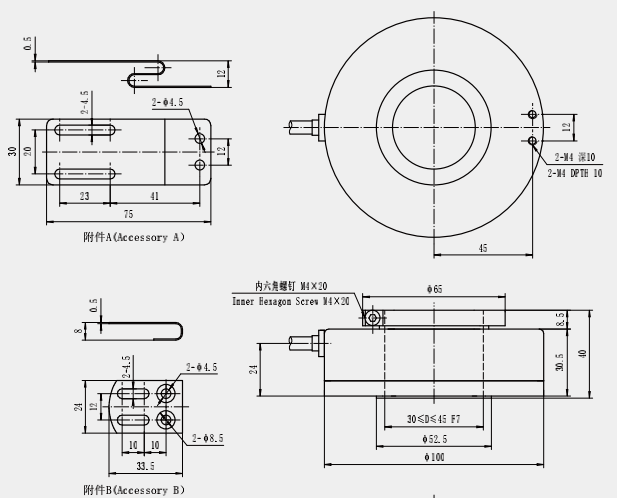

Manufacturing Dimensions
100h.1

100h.2

Product Paramenters

ITEM
PARAMTERS
Brand
LANDER
Encoder type
Incremental encoder
External diameter
100mm
Thickness
40mm
Shaft length

Solid Shaft diameter
18mm-30mm
Resolution
50;100;200;250;256;300;360;400;450;500;512;
600;700;720;800;900;1000;1024;1200;2000;2048;
2500;3000;3600;4096;5000;
Output mode
NPN&PNP
Voltage output
Push-pull output
Line driver (TTL,HTL,RS422)
Output phase
Phase A,B,Z,A-,B-,Z-
Outlet type
Cable out from side
Protection grade
IP50 & IP65
Cable length
1m
package
Carton box
Net weight
About 650g (with package)
Certification
CE/ ISO9001
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
starting torque
less than 4.4X10-3 N.m
Intertia moment
less than 1.5x 10-6kg.m2
Shaft load
Radial 40N; Axial 20N
Top REV
5000RPM ;IP65≤3000r rpm
Environmental temperature
Operating:-20 ~+85℃;storage:-25 ~+90℃
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
49m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Certification
CE
